No Adhesive Needed: The Proven SEAFOREST 520W Framed Flexible Panel Solution
Dec 25, 2025
Where the sun shines, SEAFOREST solar panels are present.
No Adhesive Needed: The Proven SEAFOREST 520W Framed Flexible Panel Solution
1. SEAFOREST: Proven Track Record & Installation Experience in Japan

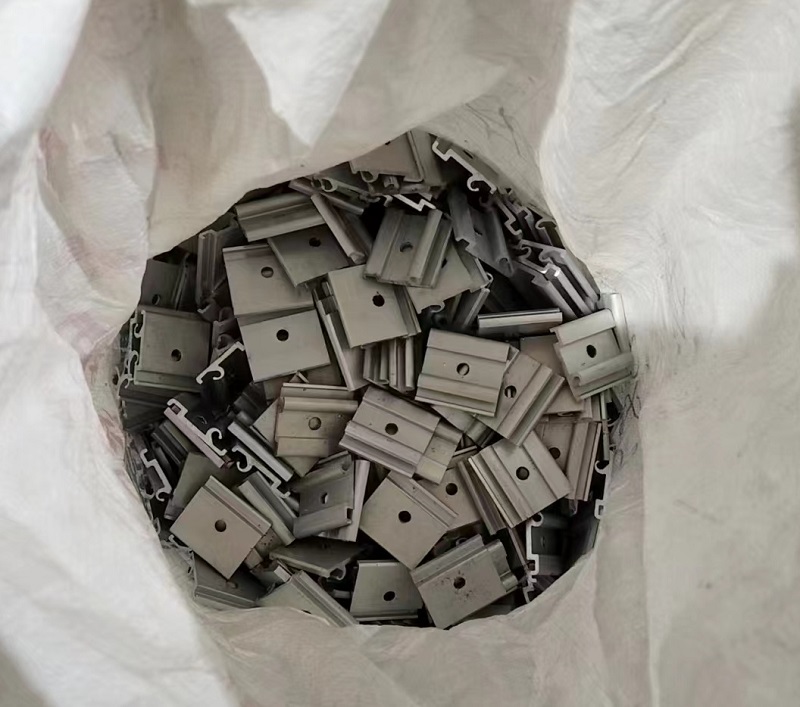

Our SEAFOREST framed flexible solar panels have successfully met Japan's stringent quality standards and safety inspections, with a stable supply record to the Japanese market. Unlike complex adhesive-based installation methods, our proprietary clamping system is backed by verifiable mechanical fixation calculations, providing strong documentation support for approval processes. This rail-free, simplified method significantly reduces both installation time and overall costs.

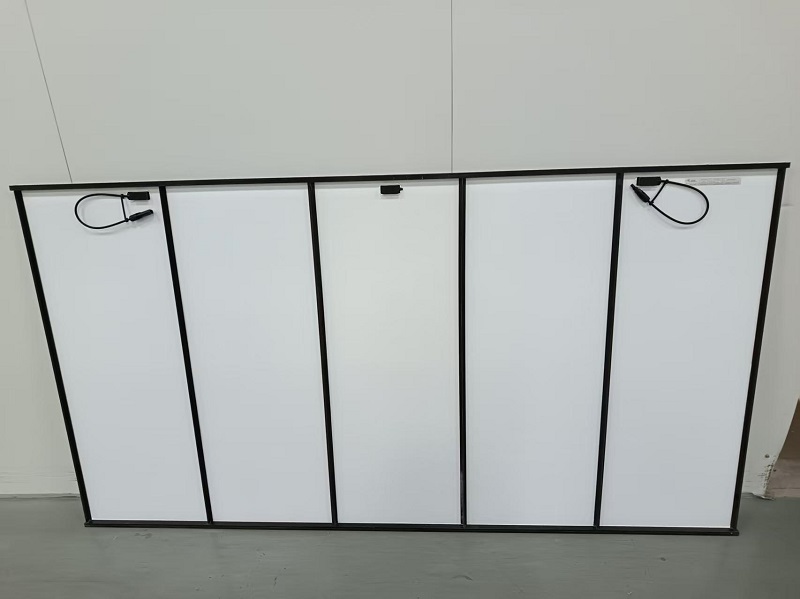

2. SEAFOREST 520W Framed Flexible Solar Panel
Product Name: SEAFOREST Framed Flexible Solar Panel
Rated Maximum Power (Pmax): 520W
Dimensions: 2250mm × 1200mm × 35mm (with frame)
Power Output Tolerance: 0 to +5W (Positive Tolerance Guaranteed)
3. Key Features and Performance of SEAFOREST Panels
(1) Innovative Anti-Crack Technology:
Specialized cell processing and encapsulation techniques prevent microcracks under bending or impact. The panels achieve zero microcracks and zero power degradation even after IEC-standard hail impact tests and 10,000 continuous bending cycles.
(2) Exceptional Wind & Snow Load Resistance:
Features high load-bearing capacity, having passed 17-level wind tunnel testing (56 m/s wind speed) and frontal static load testing of 5,400 Pa.
Snow Load Resistance: Withstands snow accumulation up to 2 meters thick.

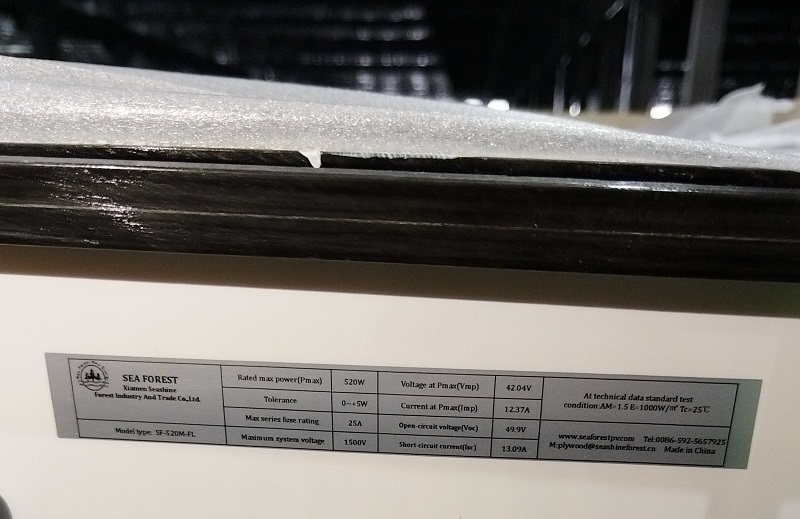

(3) Excellent Electrical Characteristics:
Voltage at Maximum Power (Vmp): 42.04V
Current at Maximum Power (Imp): 12.37A
Open Circuit Voltage (Voc): 49.90V
Short Circuit Current (Isc): 13.09A
Maximum System Voltage: 1500V
(4) The Ideal Panel for Energy Storage Systems:
An optimal solar panel solution for residential, industrial, and commercial energy storage systems installed on rooftops of houses, factories, schools, and corporate buildings.

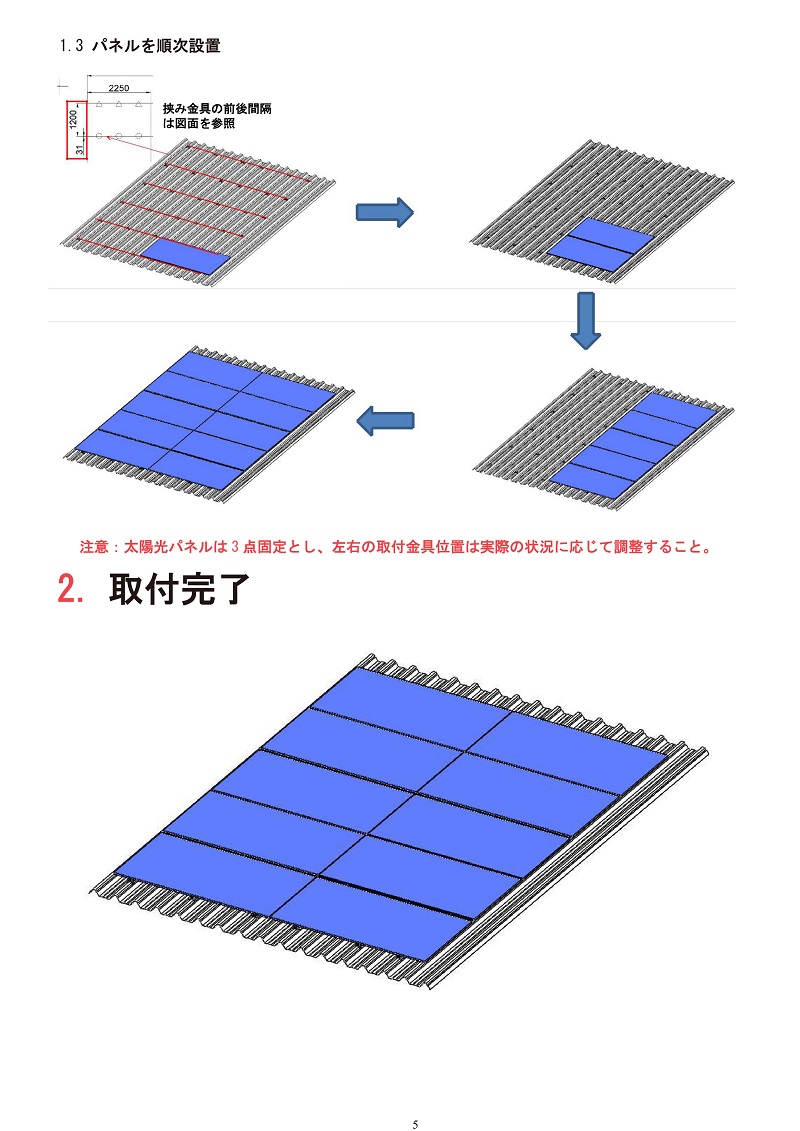

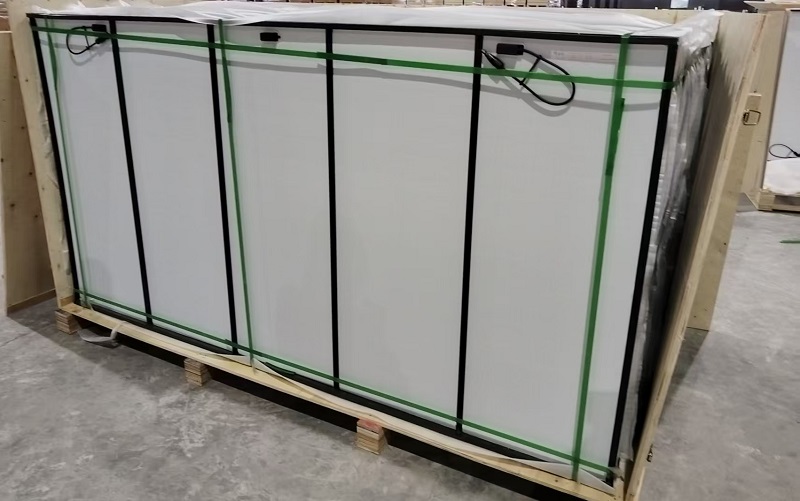

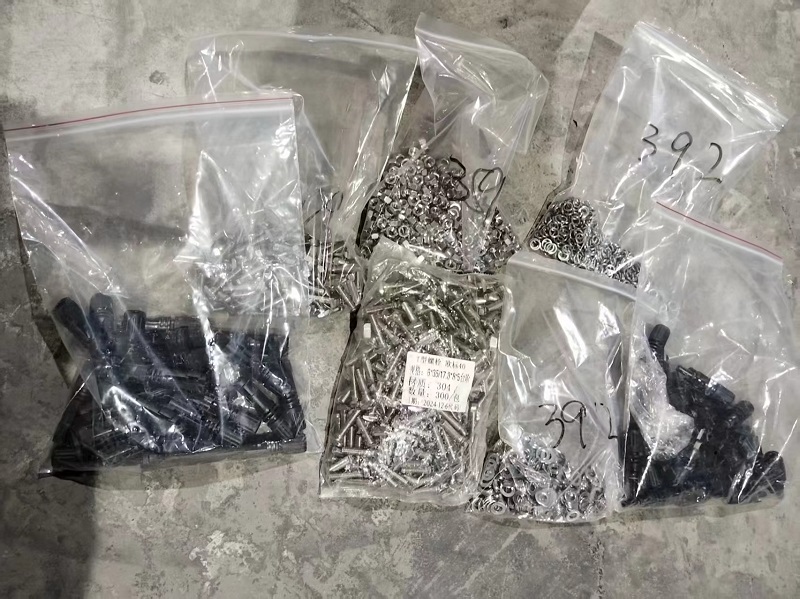

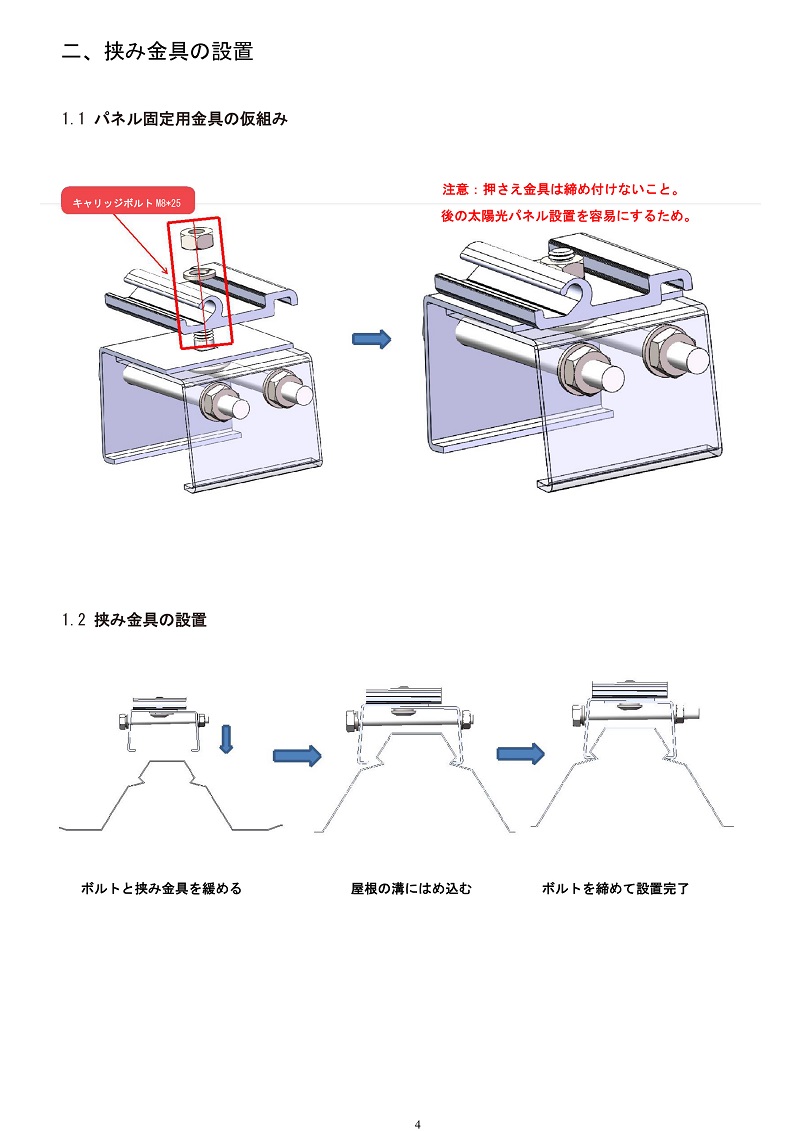

4. Product images and standard installation guidelines are attached for your reference.
5. Contact Us
If you are interested in the SEAFOREST solution, please feel free to contact us via the details below.
Headquarters: Xiamen Seashine Forest Industry And Trade Co., Ltd.
U.S. Branch: SEA FOREST ENERGY STORAGE SOLUTION CORP
Contact Person: Guo Xiaozhou
Tel: 0086-592-5657925
Mobile/WhatsApp/WeChat: 0086-1360-6089-112
URL: www.seaforestpv.com / www.seashineforest.com
