SEAFOREST Flexible Solar Panels ～ A Next-Generation Solution: Lightweight, High-Strength, and Suitable for Curved Surfaces～
Feb 02, 2026
Where there is sun, there are SEAFOREST solar panels.
SEAFOREST Flexible Solar Panels ～ A Next-Generation Solution: Lightweight, High-Strength, and Suitable for Curved Surfaces～
1. SEAFOREST: Trusted Japanese Track Record and Installation Experience
Our framed flexible solar panels from SEAFOREST meet strict Japanese quality standards and safety inspections, with a proven history of stable supply to Japan.
Unlike complex adhesive methods, our installation using dedicated pressure fixtures provides reliable mechanical fixation, supported by calculation documents that facilitate approval processes.
The rail-free, simple installation method significantly reduces both construction time and costs.
1. High-Efficiency, High-Output Model Lineup
2.1 520W Framed Flexible Panel (Japan-Proven Model)

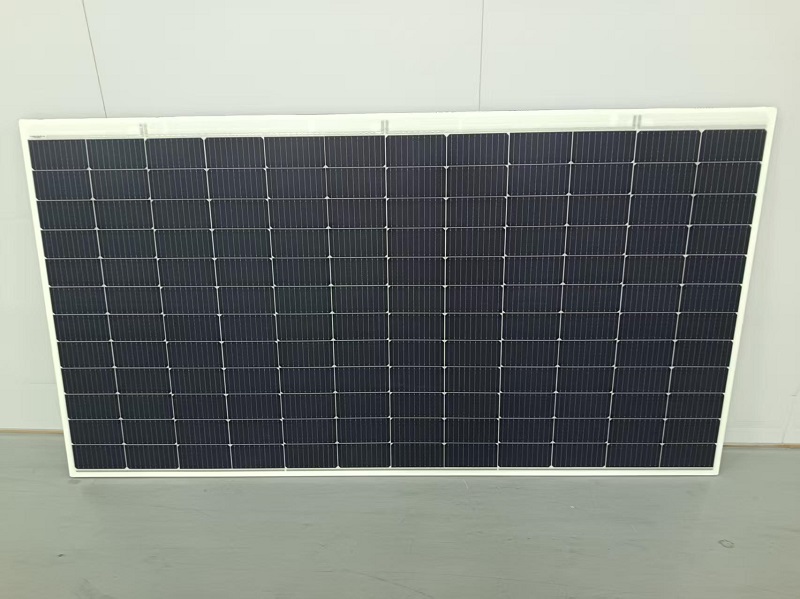

Product Name: SEAFOREST Framed Flexible Solar Panel
Nominal Maximum Output (Pmax): 520W
Dimensions: 2250mm × 1200mm × 35mm (including frame)
Output Tolerance: 0 to +5W (positive tolerance guaranteed)
Voltage at Maximum Power (Vmp): 42.04V
Current at Maximum Power (Imp): 12.37A
Open Circuit Voltage (Voc): 49.90V
Short Circuit Current (Isc): 13.09A
Maximum System Voltage: 1500V

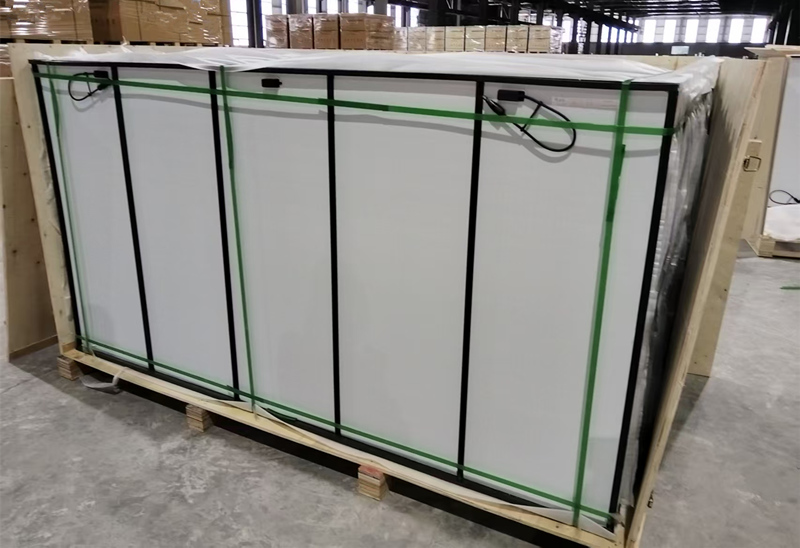

Shipping Quantity: 85 panels
2.2 Latest 560W N-TOPCon High-Efficiency Model
Maximum Output (Pmax): 560W
Voltage at Maximum Power (Vmp): 45.29V
Current at Maximum Power (Imp): 12.37A
Open Circuit Voltage (Voc): 53.05V
Short Circuit Current (Isc): 12.96A
Module Conversion Efficiency: 21.0%
1. SEAFOREST Flexible Panels: Unique Technological Advantages
Our flexible panels achieve performance and reliability surpassing conventional products through proprietary technology.
3.1 Ultimate Lightweight Design
Weighing only 2.9 kg/m², which is less than 30% of traditional glass modules (11-14 kg/m²), minimizing additional load on existing roofs.
3.2 Exceptional Flexibility
Achieves a bending radius of 0.3 m, perfectly adapting to curved or uniquely shaped roofs such as factories, warehouses, and gymnasiums.

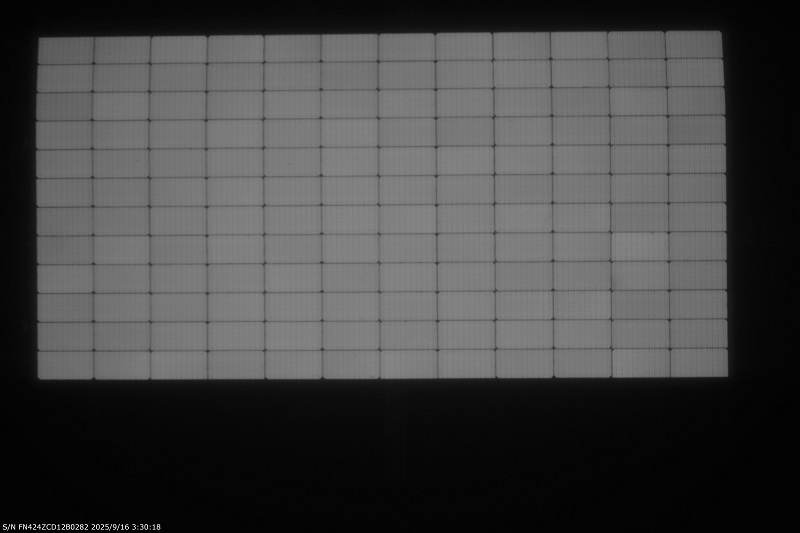

3.3 Innovative Anti-Microcrack Technology
Specialized cell treatment and encapsulation technology prevent cracks under bending or impact. Zero power degradation after IEC-standard hail impact tests and 10,000 continuous bending cycles at a 0.3 m bending radius.
3.4 Superior Wind and Snow Resistance
Passed 17-level wind tunnel tests (wind speed 56 m/s) and 5400 Pa frontal load tests (equivalent to approximately 2 m of snow accumulation), ensuring durability in harsh climatic conditions.
3.5 Innovative Installation Methods
Options for direct adhesion (no mounting structure required) or dedicated clamp fixation (no rails needed), offering simplicity, cost reduction, and excellent maintainability.
3.6 Comprehensive Environmental Adaptability
・1.8mm thickness with improved heat dissipation design
・Self-cleaning function through high-weather-resistant fluororesin coating
・Metal-free frame design ensures excellent resistance to salt damage and ammonia corrosion
3.7 Excellent Safety and Environmental Compliance
・Fire Performance: Achieves UL790 Class C, suitable for industrial/commercial roofs and public facilities requiring high fire safety standards. (No reported fire incidents, unlike some flexible modules from other Chinese manufacturers.)
3.8 Passed Anti-Glare Tests, demonstrating consideration for the surrounding environment.
1. Contact Information
Headquarters: Xiamen Seashine Forest Industry And Trade Co., Ltd
USA (Branch): SEA FOREST ENERGY STORAGE SOLUTION CORP
Contact: Guo Xiaozhou
TEL: 0086-592-5657925
Mobile/WhatsApp/WeChat: 0086-1360-6089-112
URL: www.seaforestpv.com / www.seashineforest.com
Lightweight, Flexible, High-Strength.
Unlock the potential of your roof with SEAFOREST Flexible Solar Panels.
